Description

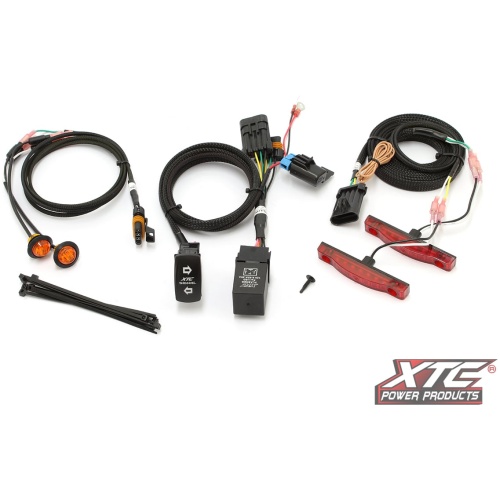

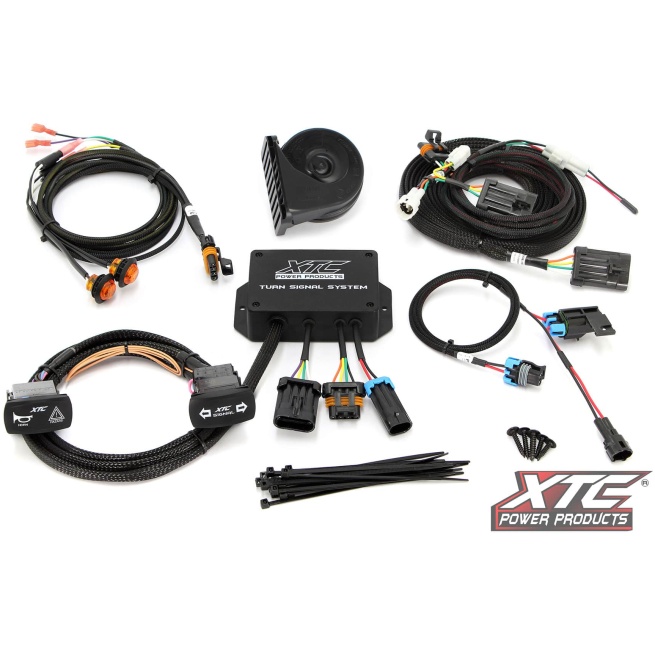

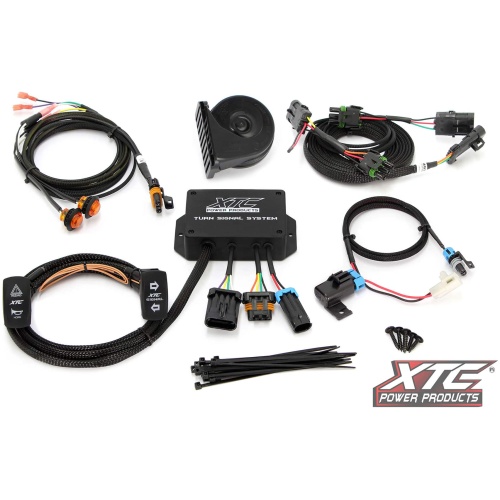

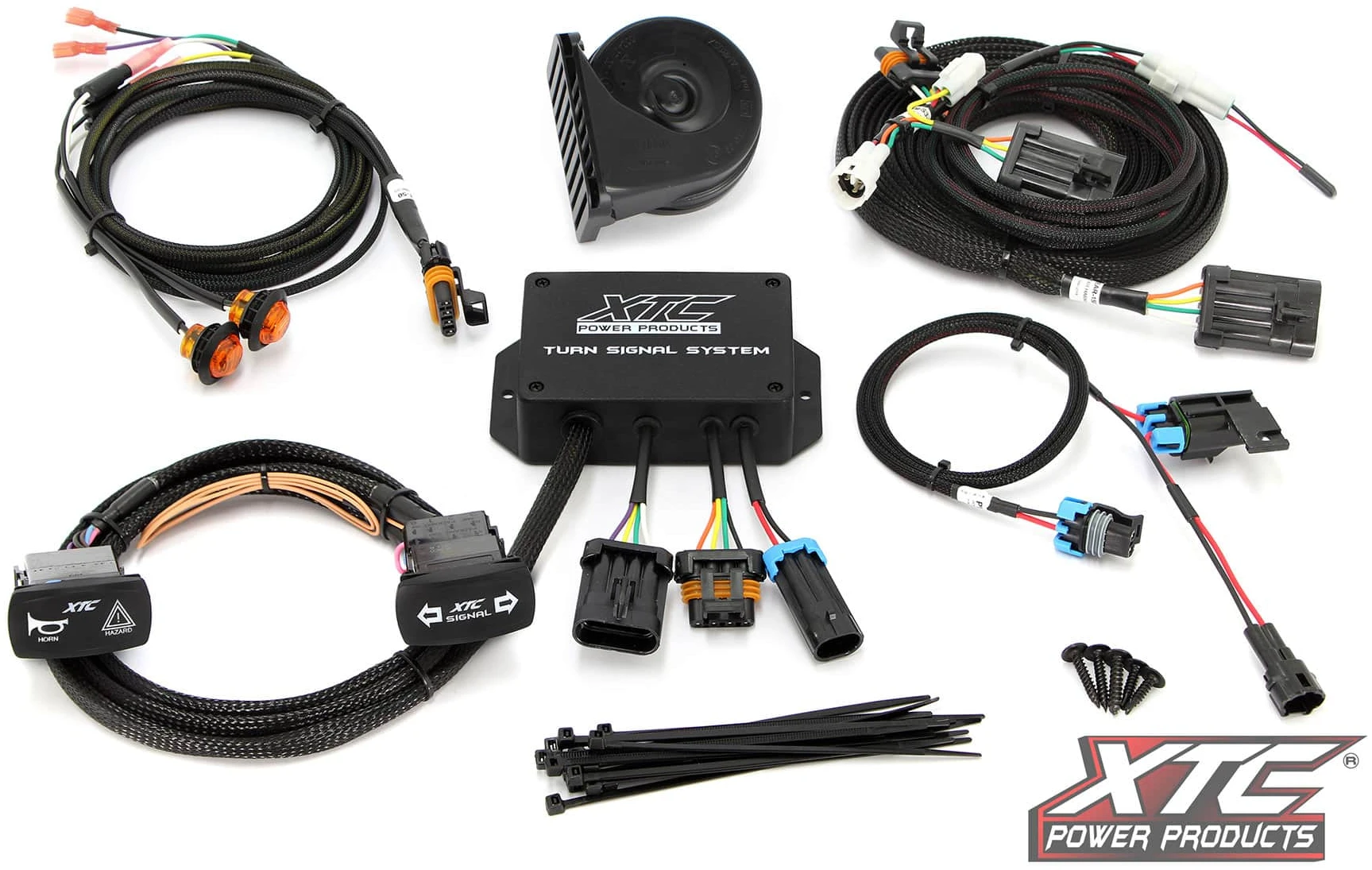

Integrated into the factory rear harness on most UTV’s, the XTC Power Products Turn Signal System (the TTS) comes with a marine switch that activates the Turn Signal System and indicates a flashing arrow. No wires to cut and no crimping, the model specific part numbers are easy to install. The TTS comes with pre-made wire harnesses that interface with the OEM harness. The brake lights work as turn signals just like a car, including hazard lights.
- Emergency Hazard Switch
- LED Lit Turn Switch
- Automotive Horn
- Comes with Front 3/4″ – 3 LED Turn Lights
- Easy to Install, Plug and Play
- Made in the USA!
Fitment:
2019 – 2021 Yamaha Wolverine
Important Notice – The connectors that our Turn Signal System Plugs inline too on the 2018 Wolverine are in a Male/Female direction from the front of the UTV to the back. The 2019-2021 model connectors are in a Female/Male direction from the front of the UTV to the back, however this is not always the case, as some still use the 2018 orientation. To guarantee fitment, Please check the driver tail light rear plug orientation on your Wolverine before ordering.
How the TSS Works
All TSS part numbers include a marine grade rocker switch with laser-cut directional arrows that flash red when activated. When you press the turn signal rocker switch, the TSS will activate the turn blinker, returning the switch to the center position cancels the blinker. Each TSS has a vehicle-specific harness that plugs inline with the rear factory taillight harness. The brake light signal passes through the TSS. As a result, the opposing brake light still functions normally while the activated turn signal brake light flashes.
