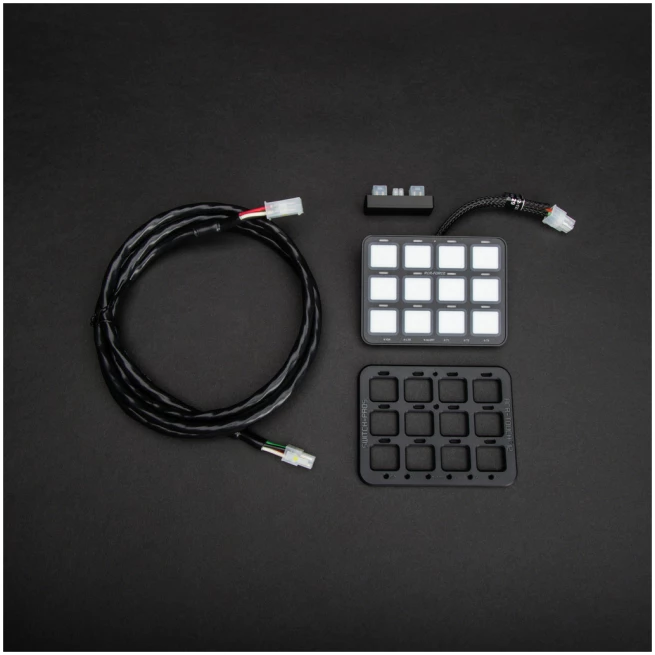

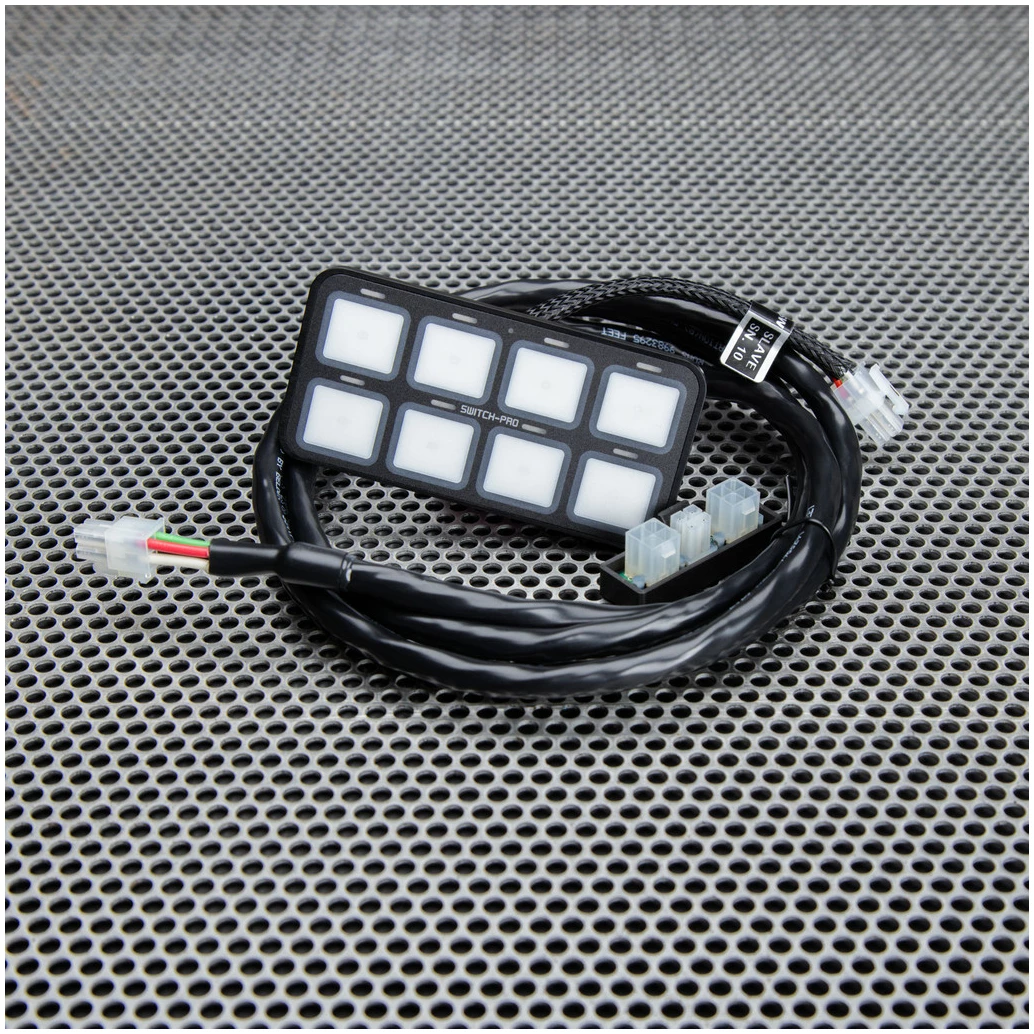

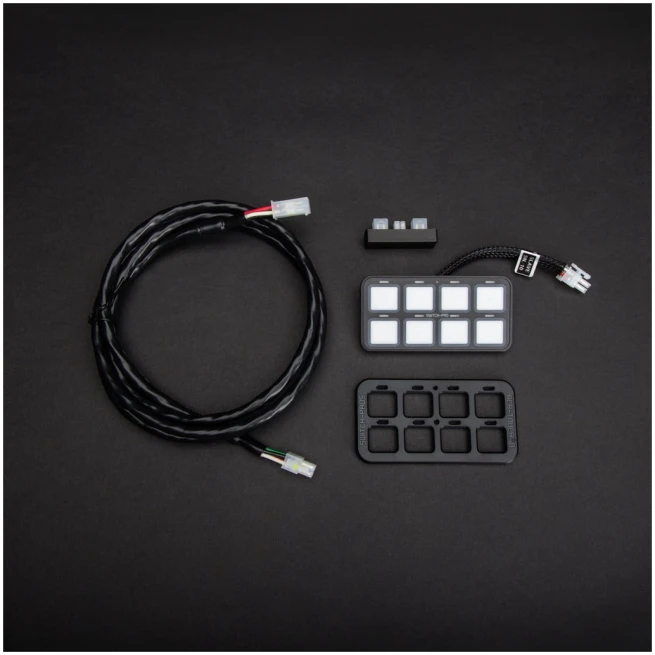

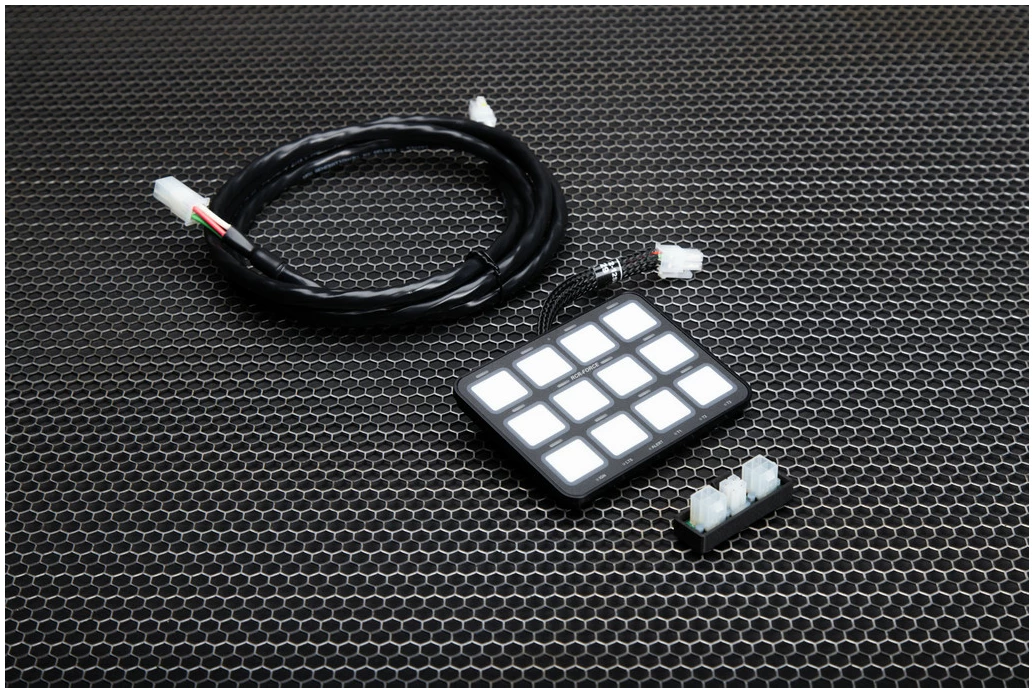

The Remote Panel acts as an additional location in which the same outputs can be controlled as the main unit. All kits include an 8 or 12 switch panel, Remote Panel Cable, one legend pack, a T connection and mounting hardware.

Compatibility

SP9100

• The SP9100 is compatible with an 8 switch remote panel
• An 8 switch Remote Panel added to an SP9100 system will operate the same 8 switches/outputs as the main panel.

RCR-Force®12

• The RCR-Force®12 is compatible with either an 8 switch Remote Panel, or a 12 switch Remote Panel.
• An 8 switch Remote Panel added to a RCR-Force®12 is able to control any 8 outputs from the main system, whether they are assigned to a switch or not.
• A 12 switch Remote Panel added to a RCR-Force®12 is able to control any 12 outputs from the main system, whether they are assigned to a switch or not.

Remote Panel Cable Length

• To determine your Remote Panel Cable Length, measure the distance the cable will run between the mounting location of the main switch panel, and the mounting location of the Remote Panel.
• Please add a 6 inch allowance for strain relief. (If your desired length exceeds 50ft, please phone our office to order at 949-581-2991.

Application

Not sure the purpose of the Remote Panel System? In the racing application, this system allows for both the driver and co-driver to operate the same outputs, from their respective seats in the vehicle.

The Remote Panel System is also utilized by work trucks, where the driver needs to operate accessories from the cab of the vehicle while driving, but also from the exterior when on the job site. The Remote Panel can also be used for operation of accessories from the driver’s seat, or a rooftop tent.

If you have any questions regarding the Remote Panel system or are unsure of the system that suits your needs best, please phone our office at (949)581-2991 or email our team at techsupport@switch-pros.com

**The Remote Panel is NOT a standalone system, and must be used in conjunction with an SP9100 or RCR-Force®12 system. The Remote Panel System does not provide additional outputs, only an opportunity to control the same outputs from multiple parts of the vehicle.  For more outputs, an entire SP9100 or RCR system is required.
