Description

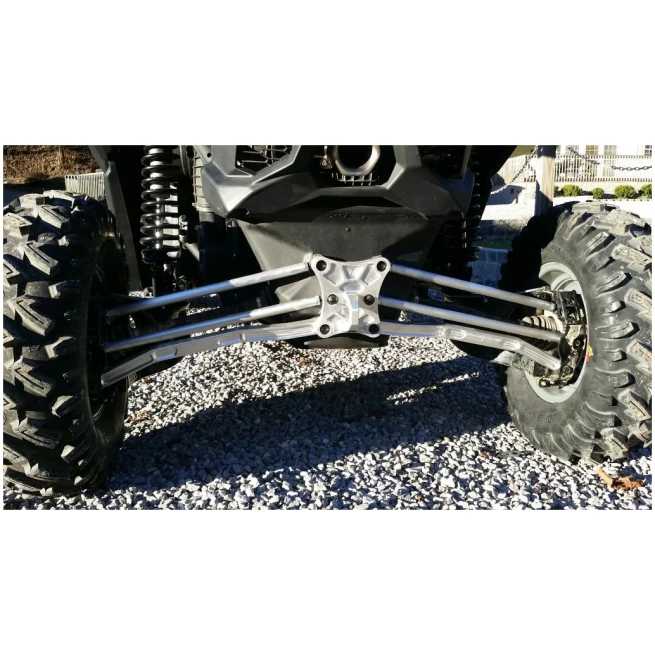

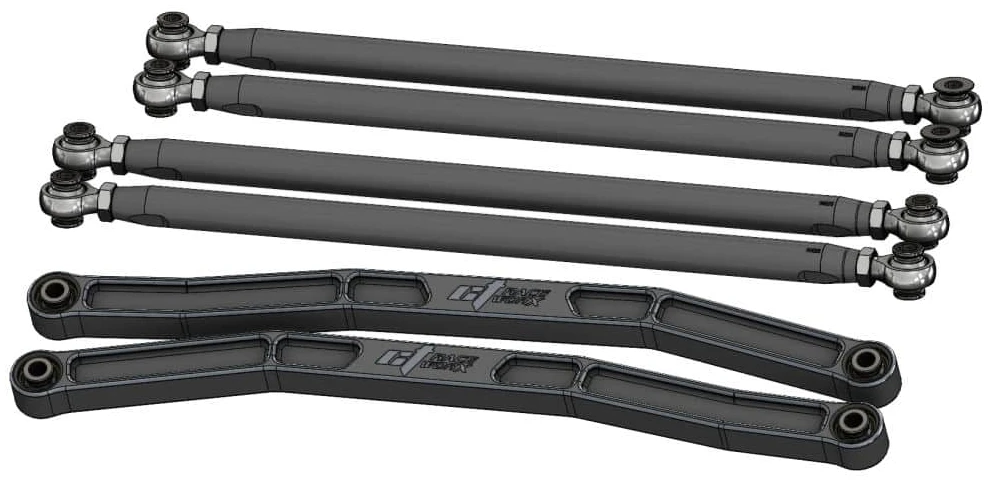

Maverick X3 64″ High Clearance WORX Series Billet Radius Rod Kit
These are the ultimate radius rods. The high clearance lower rods are built from 7075-T6 aluminum and feature over an inch or group clearance.
This is aircraft grade aluminum and the strongest aluminum option for our sport. The ends house FK uniballs, the same series joints that the trophy trucks are running. The middle (toe) link and upper radius rod are solid 1-1/8″ 7075-T6 aluminum.
The JMX series of joints from FK is something that we’ve had a tremendous amount of success with over the years. These joints use a fabric based teflon liner known as a PTFE liner. The inner joint housing is compressed to create a preload on the ball that will stay tight roughly 3 times longer than a standard injected teflon rod end, which is standard in the industry.
We do offer boots for these joints. The boot increases the life of the joint even more by keeping the debris out of the joint.
This kit allows for full adjustability of camber and toe while installed sitting at ride height.
Here are some basic strength differences between 6061 and 7075 aluminum and how much stronger our lower radius rods are being made from 7075. Â What does this mean? Â It means ours won’t elongate, stretch, bend, dent and even scratch like 6061 will. Â LIFETIME WARRANTY
WORX Series Billet Radius Rod Kit
6061 Properties
Tensile Strength – 45,000 psi
- Yield Point – 40,000 psi
- Brinell Hardness – 95
- Elongation at Break – 12%
- Shear Strength – 31,000 psi
- Strength to Weight Ratio: 115 kN-m/kg
7075 Properties
Tensile Strength – 83,000 psi
- Yield Point – 74,000 psi
- Brinell Hardness – 150
- Elongation at Break – 10%
- Shear Strength – 48,000 psi
- Strength to Weight Ratio: 196 kN-m/kg
