Description
This gusset kit reinforces mounting points on the front of the control arms that have a tendency to bend or tweak from harder hits.

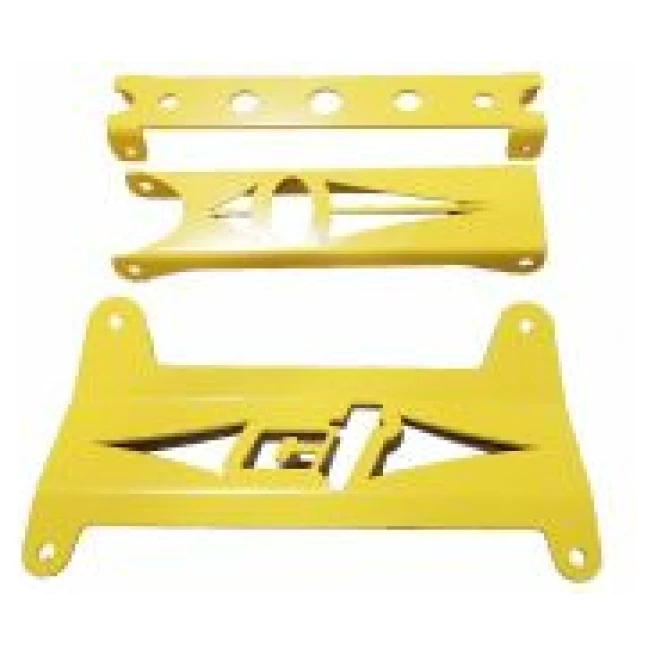

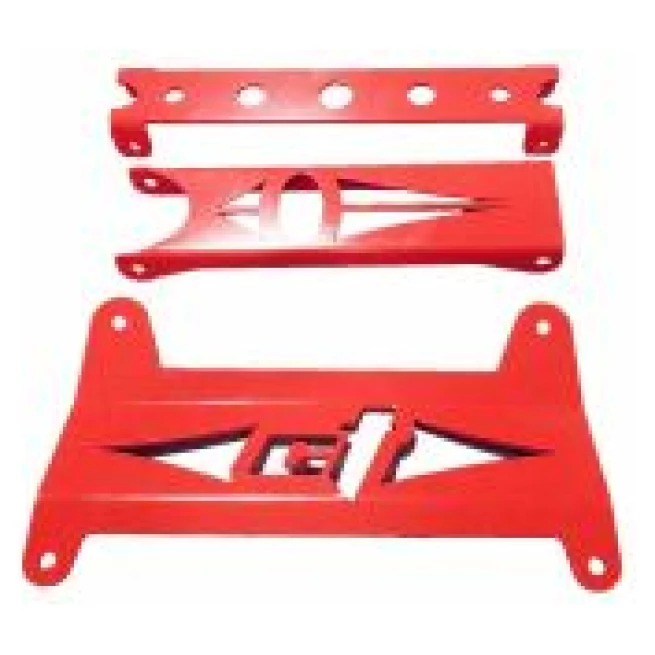

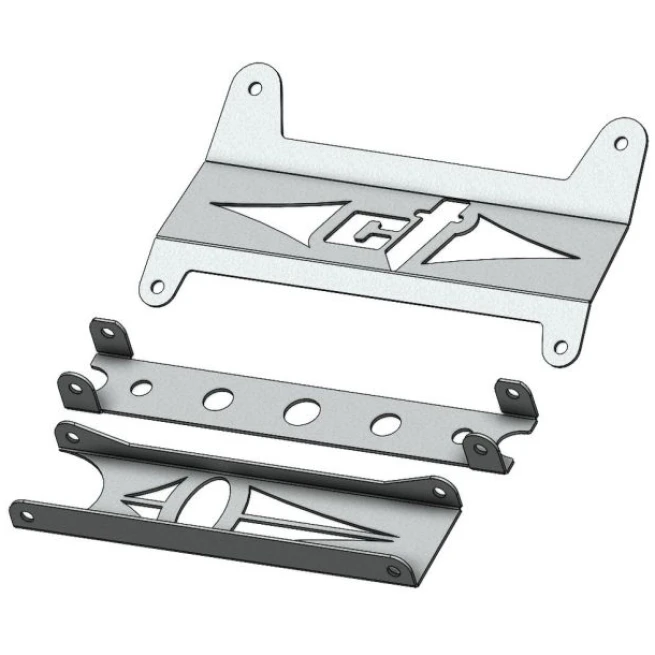

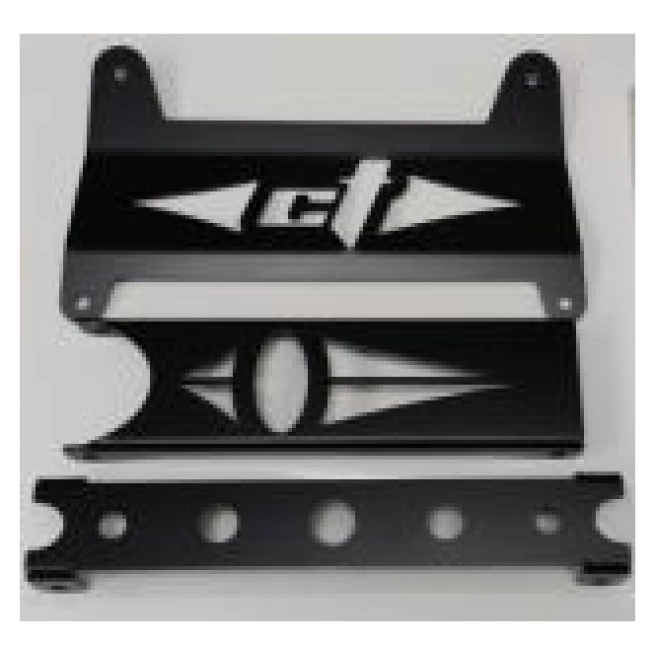

This is a three piece gusset kit.
All four front mounting positions for the upper and lower a-arms are tied in by the large front plate. This plate is built from 3/16 cold rolled steel. This is one of the most durable pieces available on the market.
The long narrow piece ties in the rear mounting points of the front lower a arms and are built using 7 gauge and also include longer hardware.
The channel shaped piece ties in and braces and upper a arms and mounts between the arms just above the diff. This is built using 10 gauge. The recess on the side allows the radiator hose to pass through with ease.
Available in several different colors.
Does not work with the factory winch mount without modification. The 4 winch mounting holes need to be moved forward away from the gusset.
**Please be aware that this is NOT for the X3 Model!**
| Fits This Vehicle | Maverick, Maverick Max, Maverick XDS / XRS Turbo, Maverick XXC |
|---|
