Description

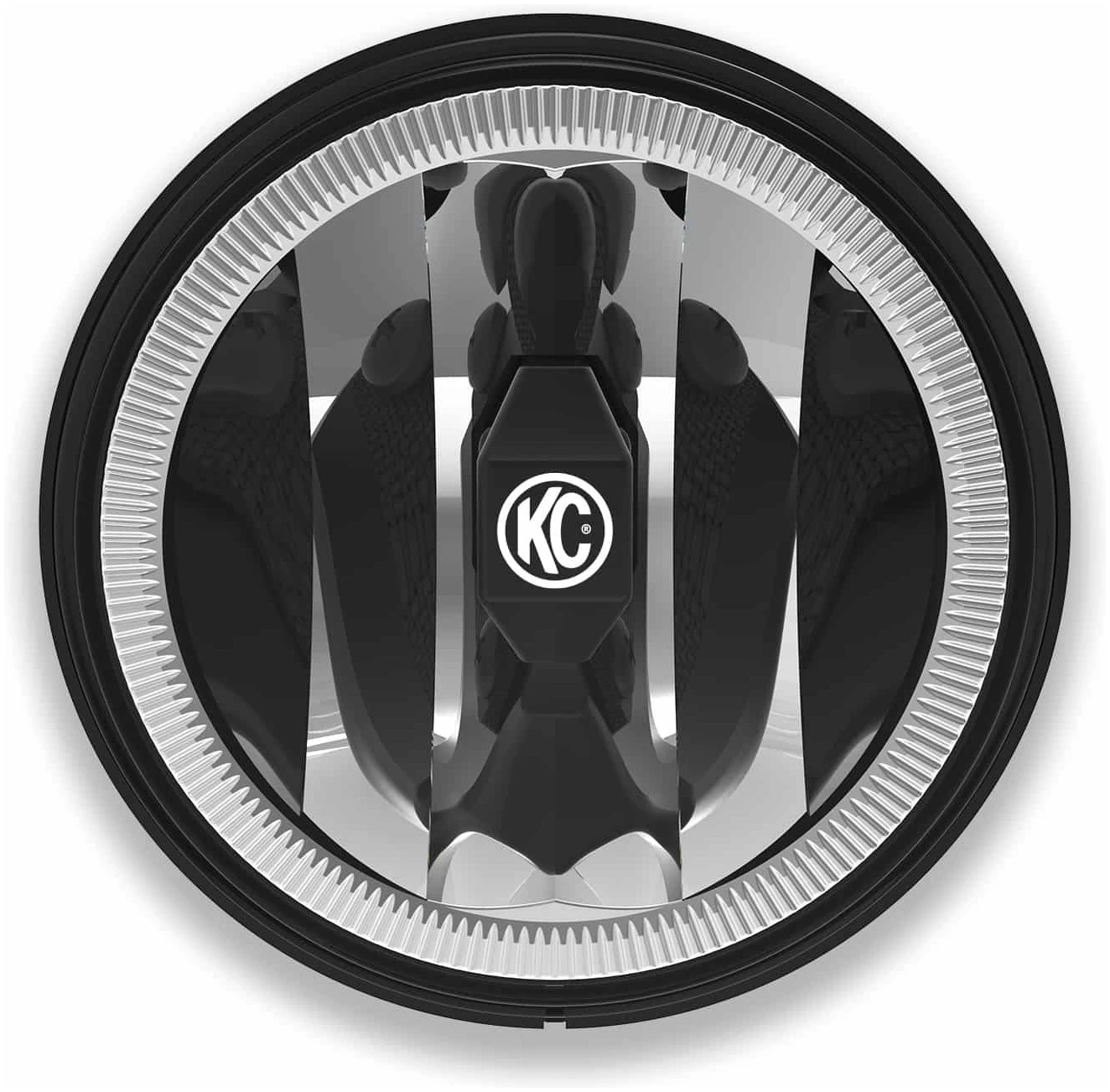

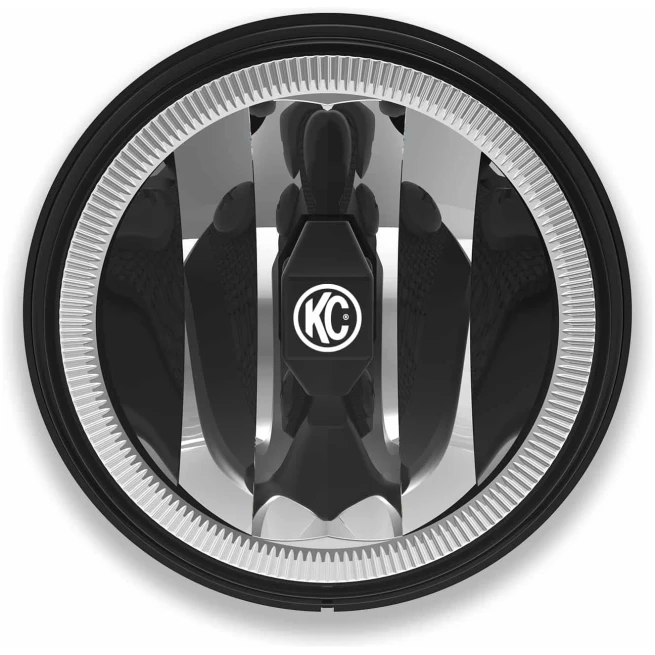

KC Hilites 6″ Gravity LED Insert is used as a replacement or upgrade to existing 6″ Halogen Daylighter, Pro-Sport, and other 6″ lights. Features efficient 5000K CREE LED bulbs in a spot beam pattern, for focused width and distance.
FEATURES
-20W Gravity® LED G6 Optical Inserts
-Aluminum Housing
-Hard Coated Polycarbonate Lens
-Spot Beam Pattern
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Spot- 2,300 lm
-Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
-Lux @10 Meters: Spot- 2,150 lx
-Candela: Spot- 215,000 cd
-Beam Distance (Meters): Spot- 972m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.67A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W – 5.68″ x H – 5.66″ x D – 3.32″
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 2,150 lx @ 10m and Spot Beam distance of 972 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.
Gravity LED G6 Inserts DATA SHEET
