KC HiLiTES – GRAVITY® LED G6 OPTICAL INSERT PAIR PACK SYSTEM

Description

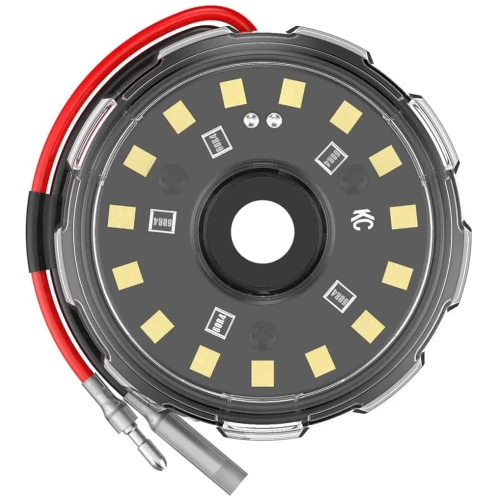

KC HiLiTES 6″ Gravity LED Inserts allows you to upgrade existing Halogen 6″ Daylighter and Pro-Sport lights. Features efficient CREE LEDs in a spot beam pattern for focused width and distance. System includes (2) 6″ 20w Gravity LED inserts.

FEATURES
-2 x 20W Gravity® LED G6 optical inserts
-Aluminum Housing
-Hard Coated Polycarbonate Lens
-Spot Beam Pattern

LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Spot- 2,300 lm
-Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
-Lux @10 Meters: Spot- 2,150 lx
-Candela: Spot- 215,000 cd
-Beam Distance (Meters): Spot- 972m

SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.67A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W – 5.68″ x H – 5.66″ x D – 3.32″

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 2,150 lx @ 10m and Spot Beam distance of 972 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.
