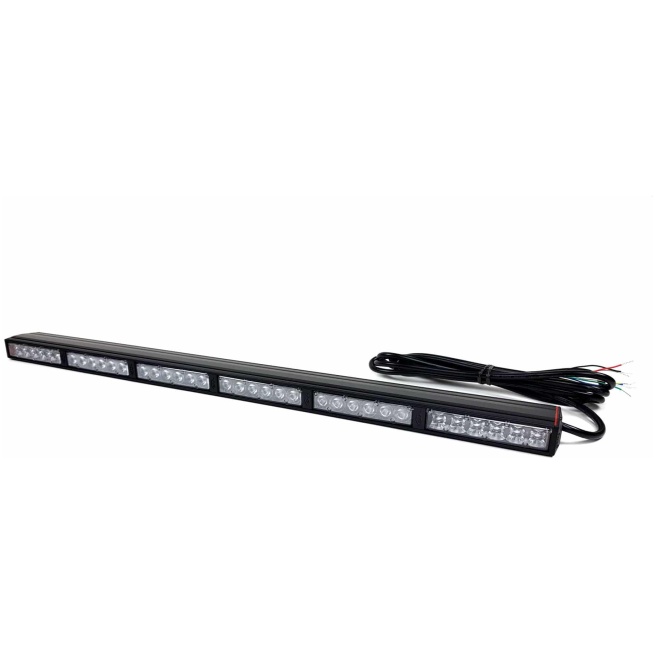

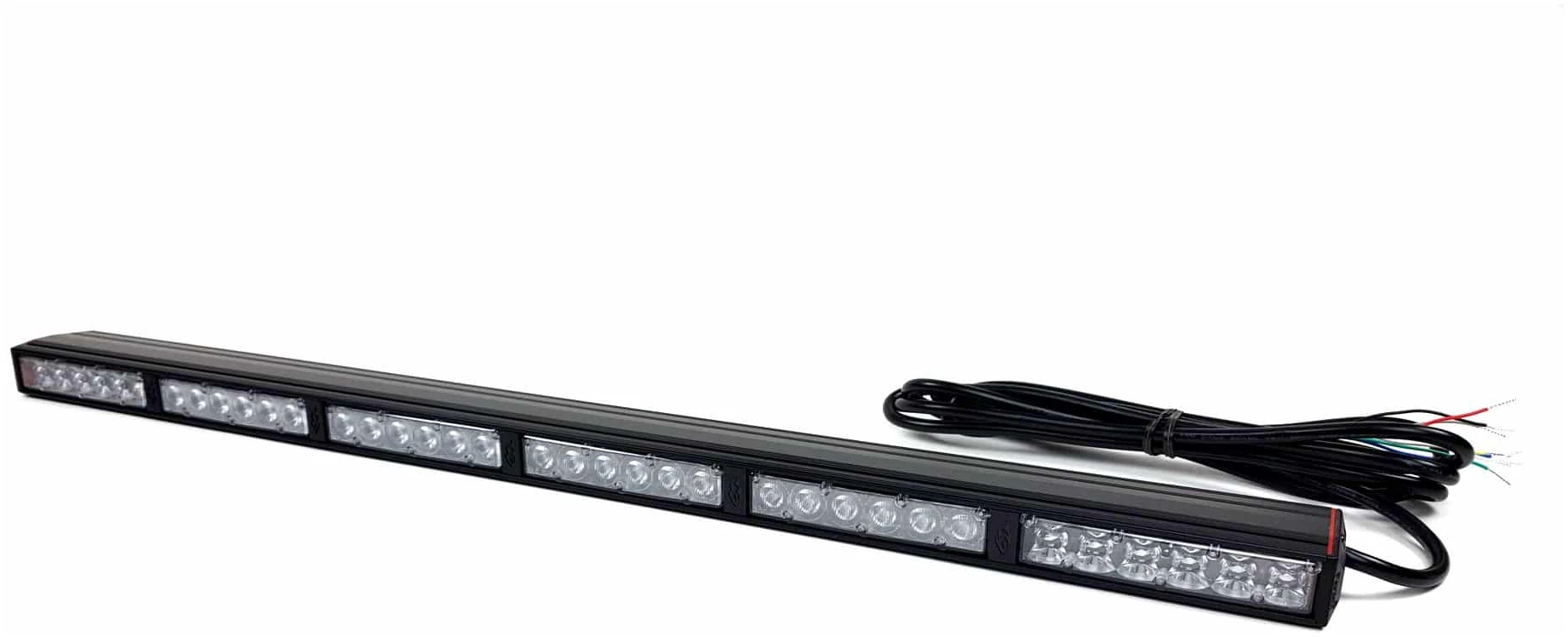

KC HiLiTES – 28″ Chase LED Light Bar – Multi-Function – Rear Facing

Description

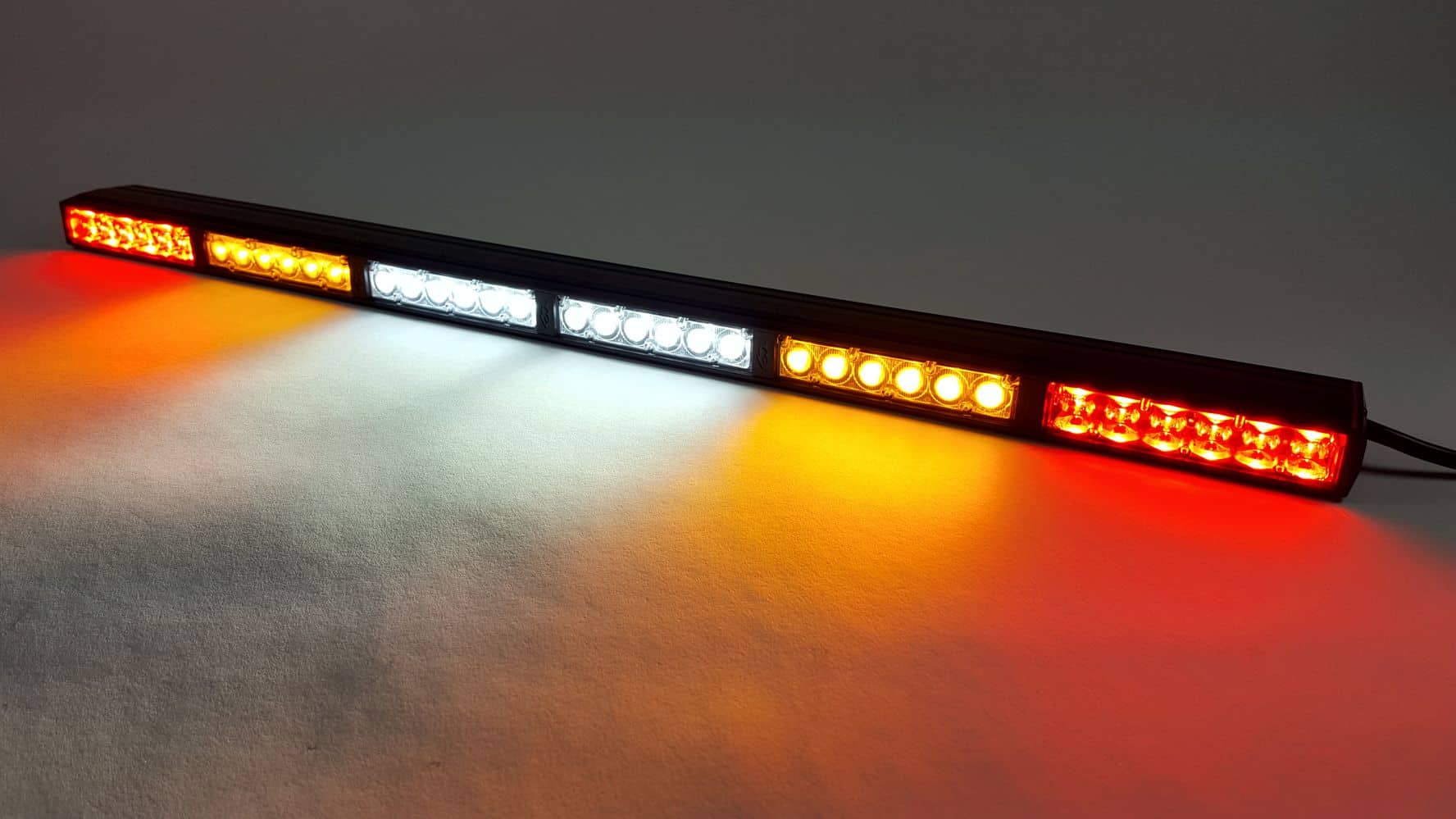

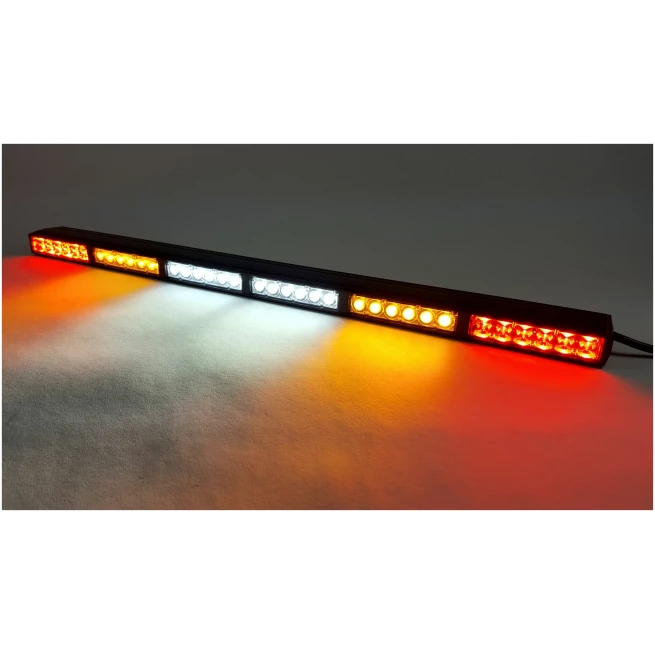

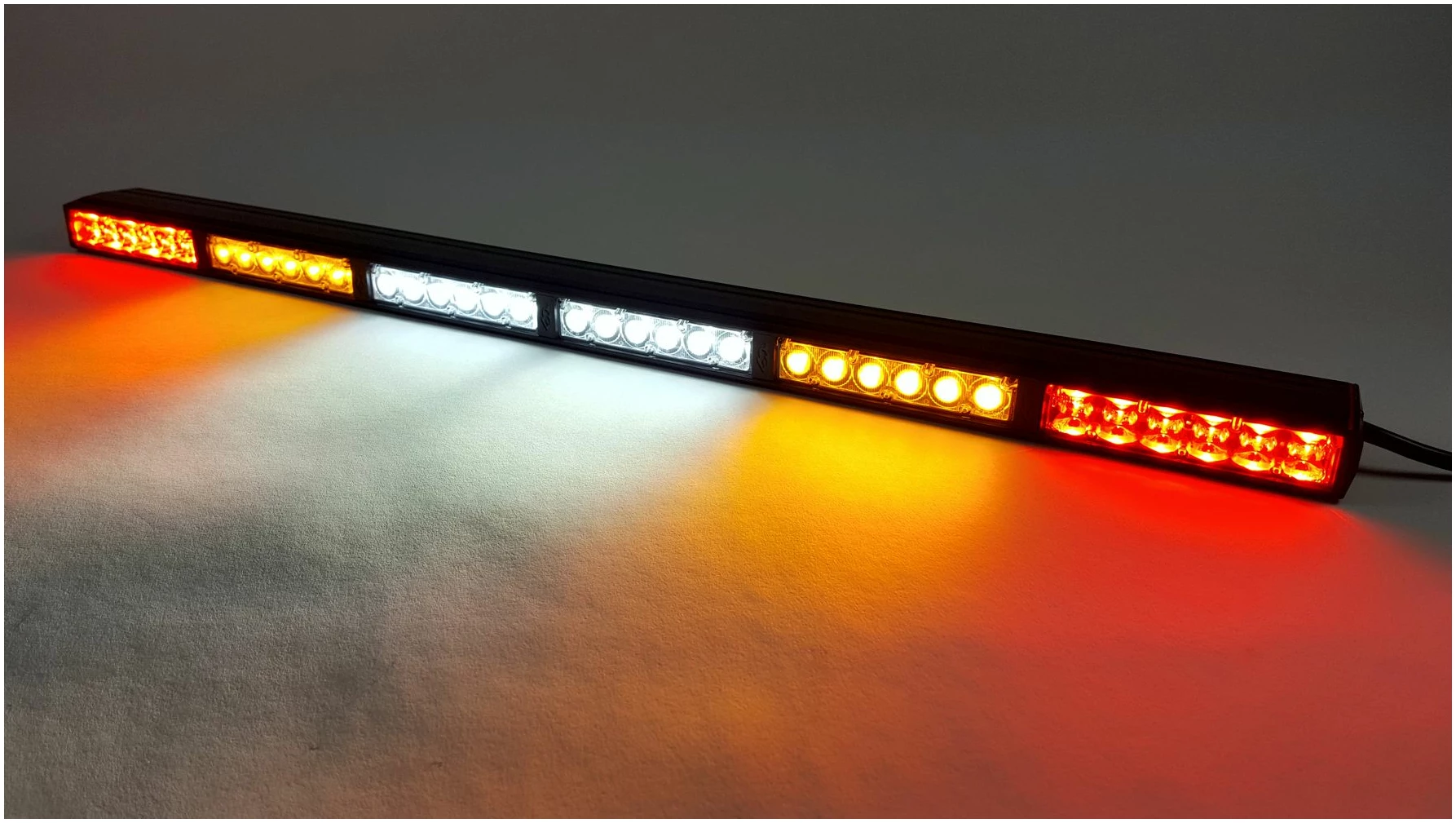

This 28″ Rear Facing LED Chase Bar features integrated tail/brake lights, amber dust lights with strobe capability, along with white floodlights for added visibility, dramatically improving rider safety on the trail or racecourse.

FEATURES
-28″ Rear Facing LED Light Bar
-Multi Function Integration and Design:                                                                                                                                                 -Red LED Tail & Brake Lights with Blinker Capability                                                                                                                         -Amber LED Dust Lights with Strobe Capability                                                                                                                                 -White LED Floodlights
-Lightweight Extruded Aluminum Housing for Maximum Heat Dissipation and Durability
-Weather Resistant Enclosure and Shatter-Proof Polycarbonate Lens for Maximum Durability
-40-deg Spread and 180-deg Flood Beam Optics

SPECIFICATIONS
-LED Source: 4W Cree LED
-Raw Lumens: 4,500 lm
-LED Color: Red, Amber, and Clear LEDs
-Amp Draw: 5.0A (max draw)
-Voltage: 12V DC
-Certifications: SAE J595, CT13, SAE J1119
-Product Dimensions: H – 1.22″” x L – 28.14″” x W- 2.25″”

MULTI-FUNCTIONAL USE FOR STREET OR COMPETITIVE RACING
28″ multi-function rear facing LED taillight bar has been exclusively configured for use on UTVs, Jeeps, Truck racks, Race trucks or even custom applications. Enhanced features include red tail/brake light with blinker capability, amber dust lights with solid or strobe capability and white flood/work lights for area lighting.

The use of a rear facing LED tail light bar dramatically improves rider safety on the trail or off-roading through desert terrains for recreational and competitive race course use. This rear facing LED tail light bar also is equipped with standard functions to comply with street legal standards, perfect for use on your Jeep, Car, Truck and UTV (If permitted for street use).

MOUNTING OPTIONS
Featuring a full length adjustable bolt slot located on rear section of light bar or threaded end mounts for use with bolted or welded on vehicle mounting tabs.

IMPORTANT: This bar is not compatible with aftermarket turn signals

Chase Light Installation Instructions

Data Sheet – 28″ Multi-Function Rear Chase LED Light Bar
